Product Description

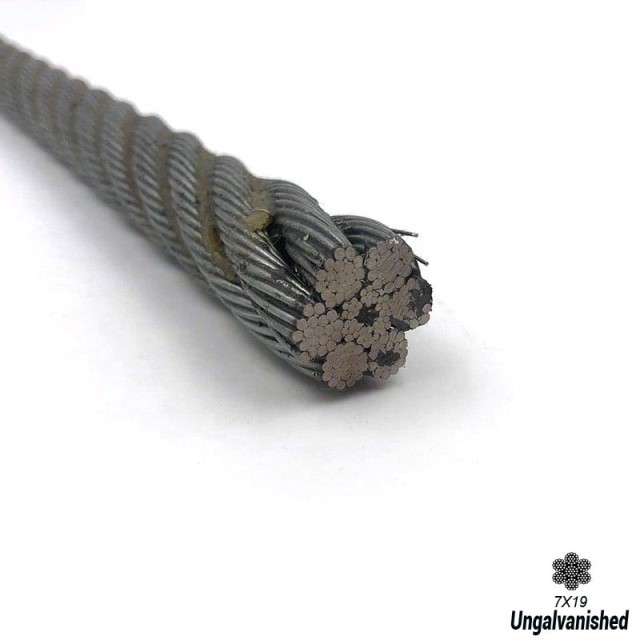

7x19 construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6x19 constructions.

6x19 construction wire rope is available with either FC (fibre core) or WSC (wire strand core). When supplied with a WSC, the rope is more commonly referred to as 7x19. The rope is very popular in diameters from 3mm to 16mm and is used on a variety of applications. 6x19 FC and 6x19 WSC (7x19) is very flexible in diameters 3mm to 6mm and is used for many requirements where wire ropes are running over pulleys. 7x19 construction is readily available in both galvanized and marine grade stainless steel.

Applications

• General engineering applications
• Drill lines / drilling ropes
• Elevator rope / lift rope
• Wire rope slings
• Derricking ropes
• Pendant ropes
• Crane rope
• Hoist rope

Industry Applications

• Sand, coring and swabbing lines
• Trawl wraps / Pelagic sweeps
• Ground cables / Ground haulage
• Oil well / Oil field
• Excavator rope / Scraper rope
• Fishing rope
• Drag ropes
